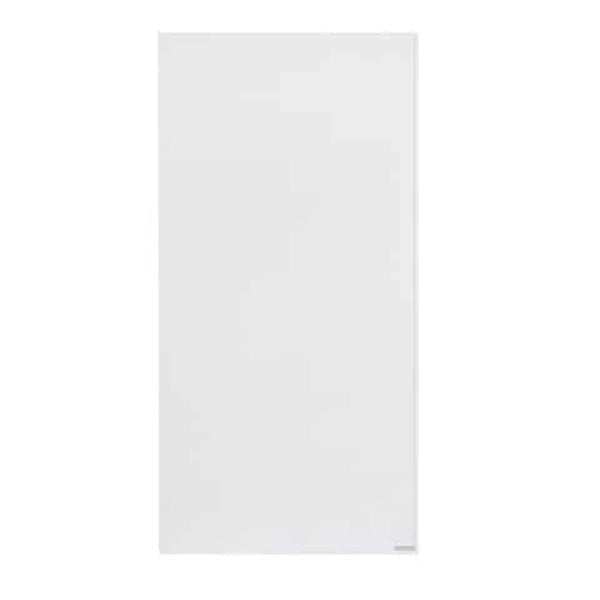

Select Integrated Ceiling Tile heating panels are expertly designed to seamlessly fit into commercial ceiling grids. These compact panels, measuring 60 x 120 cm, are ideal for new construction projects or refurbishment efforts in public spaces, offices, and schools.

Infrared Heater | Electric | Indoor | Herschel Ceiling Tile Key Features

  • Slimline design with a white frame
  • Designed to fit 60 x 120 ceiling tiles
  • Excellent value for money
  • Saves space in commercial settings
  • Delivers gentle far infrared heating
  • Optimized for use with Herschel iQ controls


The infrared ceiling heater panels by Herschel provide comprehensive or supplemental heating in a variety of settings. Their innovative design allows for maximum utilization of wall and floor space, making them a perfect choice for commercial and public buildings.

The Herschel infrared ceiling tile heaters generate clean, gentle, and comfortable heat, focusing on heating people and objects rather than the entire air volume in the room. This feature offers significant energy savings over conventional heating systems.

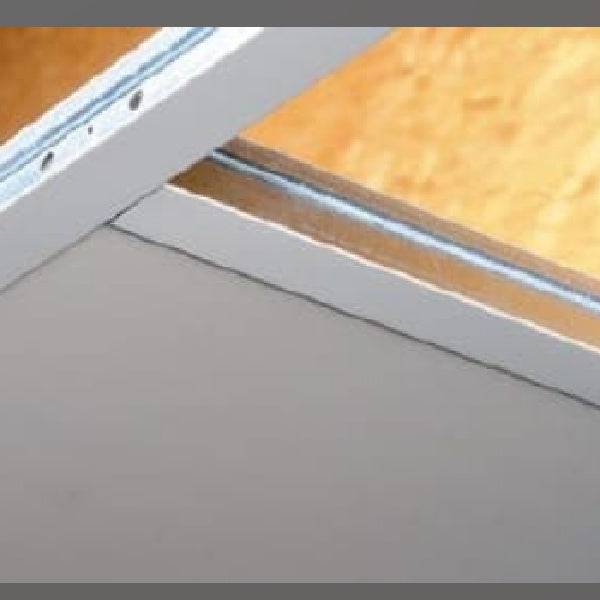

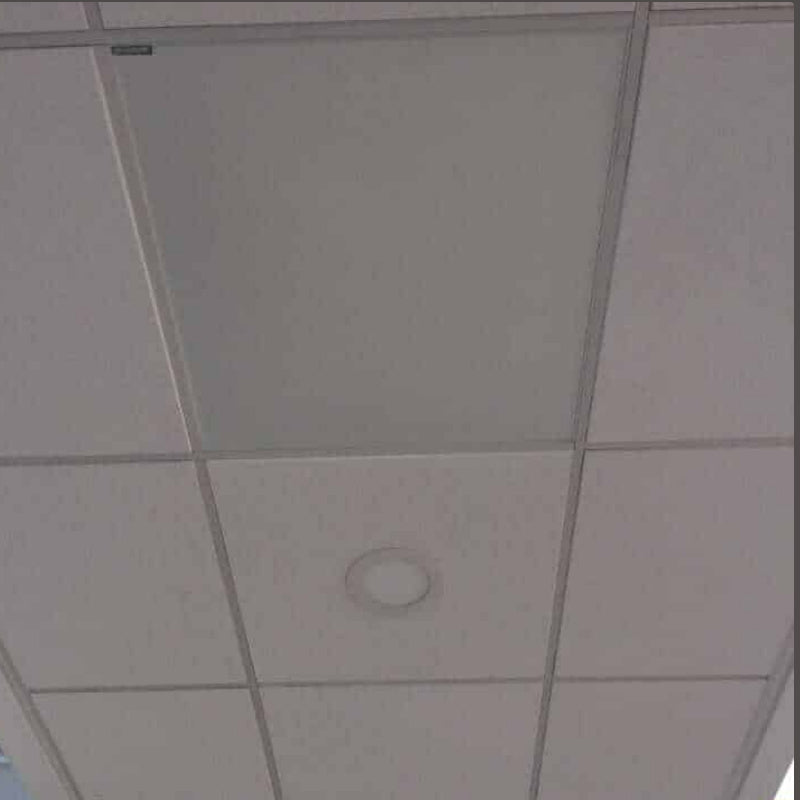

These 700-watt heaters are designed to fit into 60 x 120 ceiling tiles and are intended solely for installation in a ceiling grid tile space.

Installation and Control

Installing these panels is simple, and they can be efficiently controlled using Herschel's own iQ system or existing building management controls. Please note that these panels do not include any built-in controls or brackets. They must be used with Herschel iQ controls or equivalent for full compliance with the European energy-saving regulation (ERP Lot 20).

For ceiling mounting panels on a ceiling surface, consider the Herschel Select XLS White panels as these tiles replace ceiling tiles and are not attached directly to the ceiling.

Finish and Service

These panels are available exclusively in a white aluminium finish with a matching frame.

Infrared Heater | Electric | Indoor | Herschel Ceiling Tile Technical Specifications

  • Heating Element: Herschel COSIX© Cell Technology
  • Front: White Aluminium
  • Rear: Steel sheet
  • Cable: 2.5m power cable
  • Frame: White Aluminium
  • Voltage: 220-240V, 50/60Hz
  • Protection: IPX4

Quality and Safety

  • RCM
  • TÜV GS Certification (TÜV SÜD Certification & Testing Co. Ltd)
  • EMC Certification (TÜV SÜD Certification & Testing Co. Ltd)
  • RoHS compliant
  • ErP Regulation (EU) 2015/1188 and Supplement (EU) 2016/2282 (Lot 20). Valid from 1 January 2018 when used with Herschel iQ

The heated areas are indicative guides only. The actual heated area will depend on the heat loss of the room, which can be influenced by factors like construction type, external walls, window area, and insulation levels.

Installation should be carried out by a suitably qualified electrician, with reference to the provided installation instructions.

Transform your space with Herschel's Select Integrated Ceiling Tile heating panels for a sleek and efficient heating solution.

Infrared Heater | Electric | Indoor | Herschel Ceiling Tile Documentation Manuals
