Ingress Protection (IP) Ratings: Protecting Electrical Equipment Guide

Ingress Protection (IP) Ratings: Protecting Electrical Equipment Guide

Table of Contents

Electric and electronic devices are susceptible to damage or malfunction when exposed to water or dust. To address this, the International Electrotechnical Commission (IEC) has established ingress protection (IP) ratings. These ratings assess the resistance of device enclosures against the intrusion of liquids and solids, providing a standardized measure of protection.

The IP ratings have gained widespread usage across various industries. They serve as a valuable tool for consumers seeking devices with enhanced resilience against dust and liquid ingress. However, it can be challenging to interpret terms like "waterproof" or "water-resistant" when used in marketing materials. The IP ratings provide a more precise and objective evaluation of a device's protective capabilities.

IEC 60529 is the international standard developed by the IEC Technical Committee 70. It defines the criteria for rating and grading the resistance of electrical and electronic enclosures against dust and liquid intrusion. The standard also addresses the accessibility of hazardous components within the enclosures.

The IP code, as outlined in IEC 60529, consists of two numerals. The first numeral indicates the degree of protection against solid objects, ranging from 0 (no protection) to 6 (complete protection against dust ingress). The second numeral represents the enclosure's resistance to liquids, ranging from 0 (no protection) to 9 (protection against high-pressure hot water from various angles).

Since its initial publication in 1976, the first edition of IEC 60529 aimed to consolidate requirements for enclosure protection. Prior to this standard, separate guidelines existed for motors, low-voltage switchgear, and control gear. The IP ratings bring together these specifications, providing a unified approach for assessing the protective capabilities of enclosures.

By adhering to IP ratings, manufacturers can clearly communicate the level of protection offered by their devices against dust and liquid ingress. Consumers can make informed decisions based on these standardized ratings, ensuring they choose products that meet their specific environmental needs.

You can also view the below rating as a pdf file here.

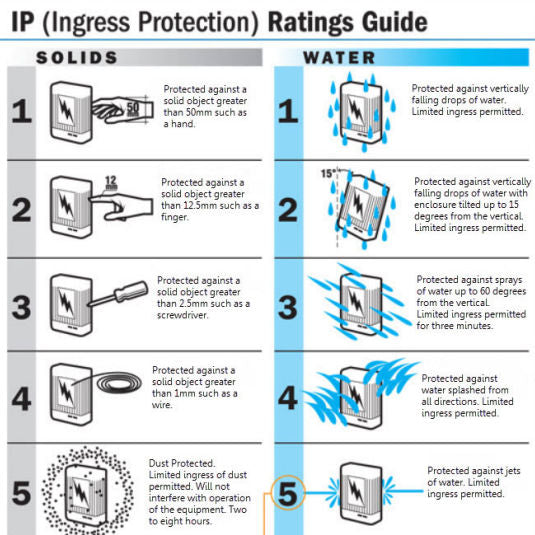

Ingress Protection Rating guide showing all the ratings applicable for electronic devices

If you got here through our Bar Fridge guide you can continue reading it here!
